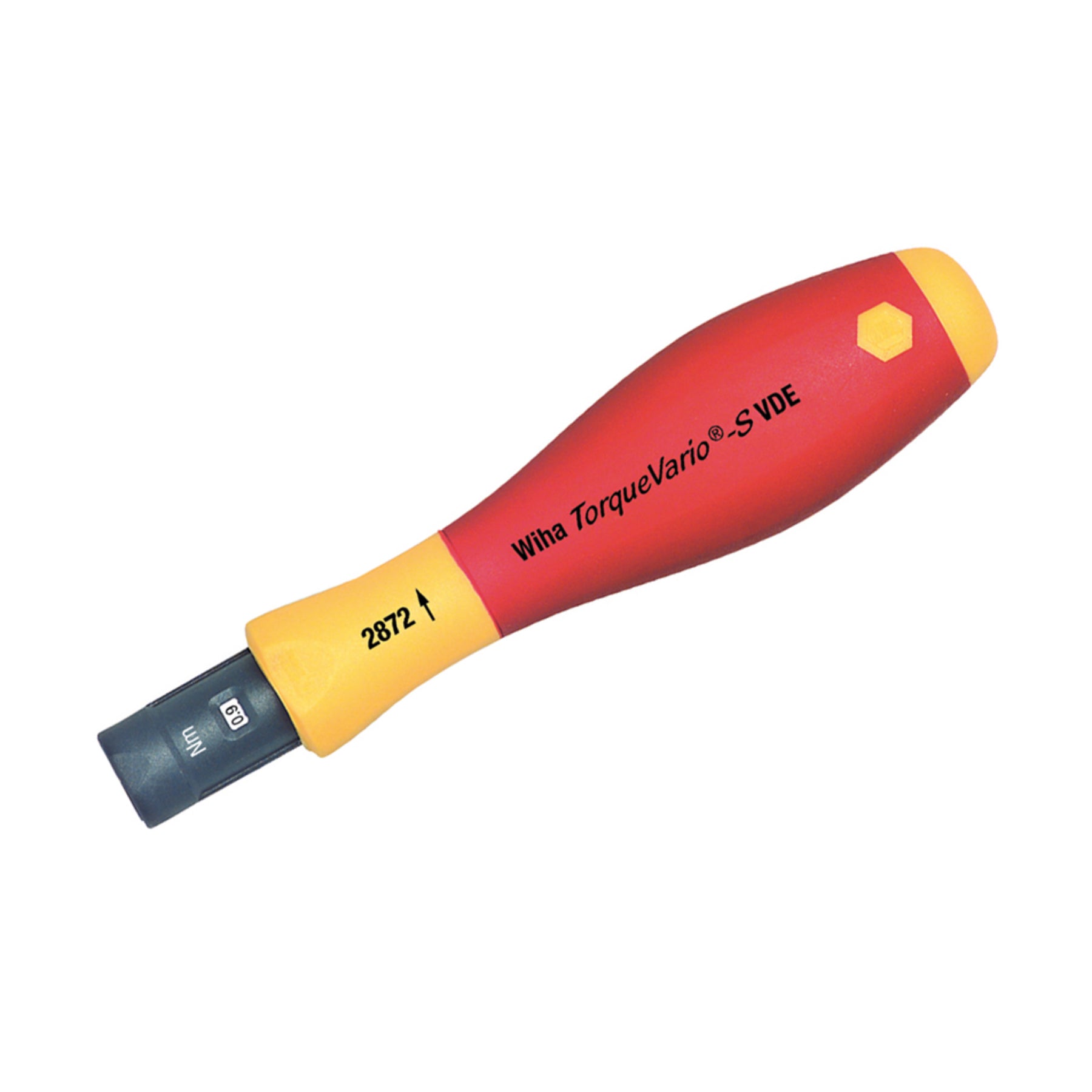

Insulated Adjustable TorqueVario-S Handle 0.8-5.0 Nm
Quantity:
Wiha Pro Rewards members earn
$11.25 USD worth of points.
Sign up for Pro Rewards to start earning points.
SlimLine blade sold separately. EN ISO 6789, BS EN 26789, ASME B107.14M
Meets ASTM F1505, VDE 0682/part201, DIN 7437, EN/IEC 60900, NFPA-70E & CSA specification

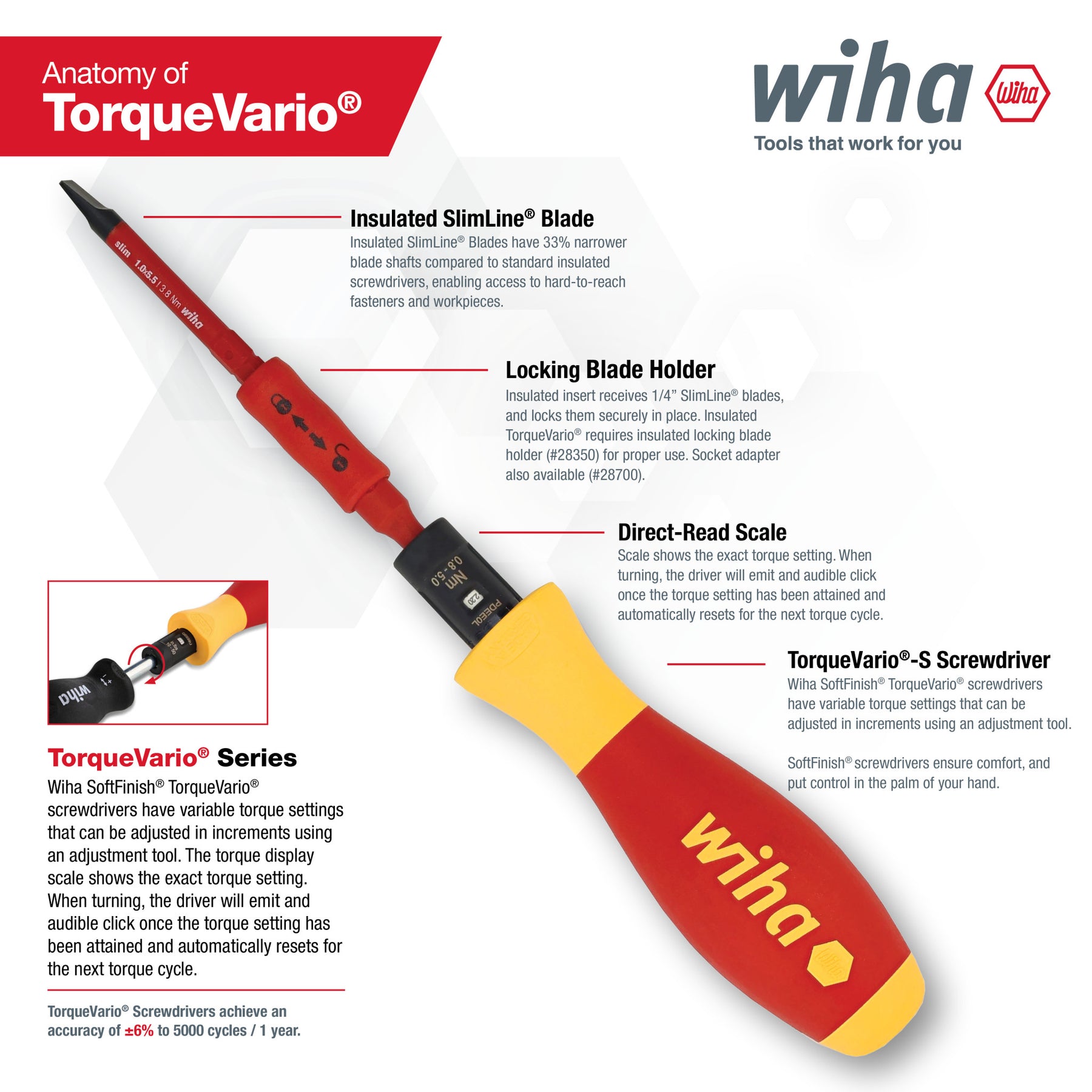

10,000 Volt Tested for a 1,000(AC) 1,500(DC) Volt Certification, VDE and GS tested tools marked with serial number and include calibration certificate. Ergonomic multi-component handle, particularly light and compact handle sizes proportioned to optimize torque range. Audible and perceptible click when the pre-set torque has been attained

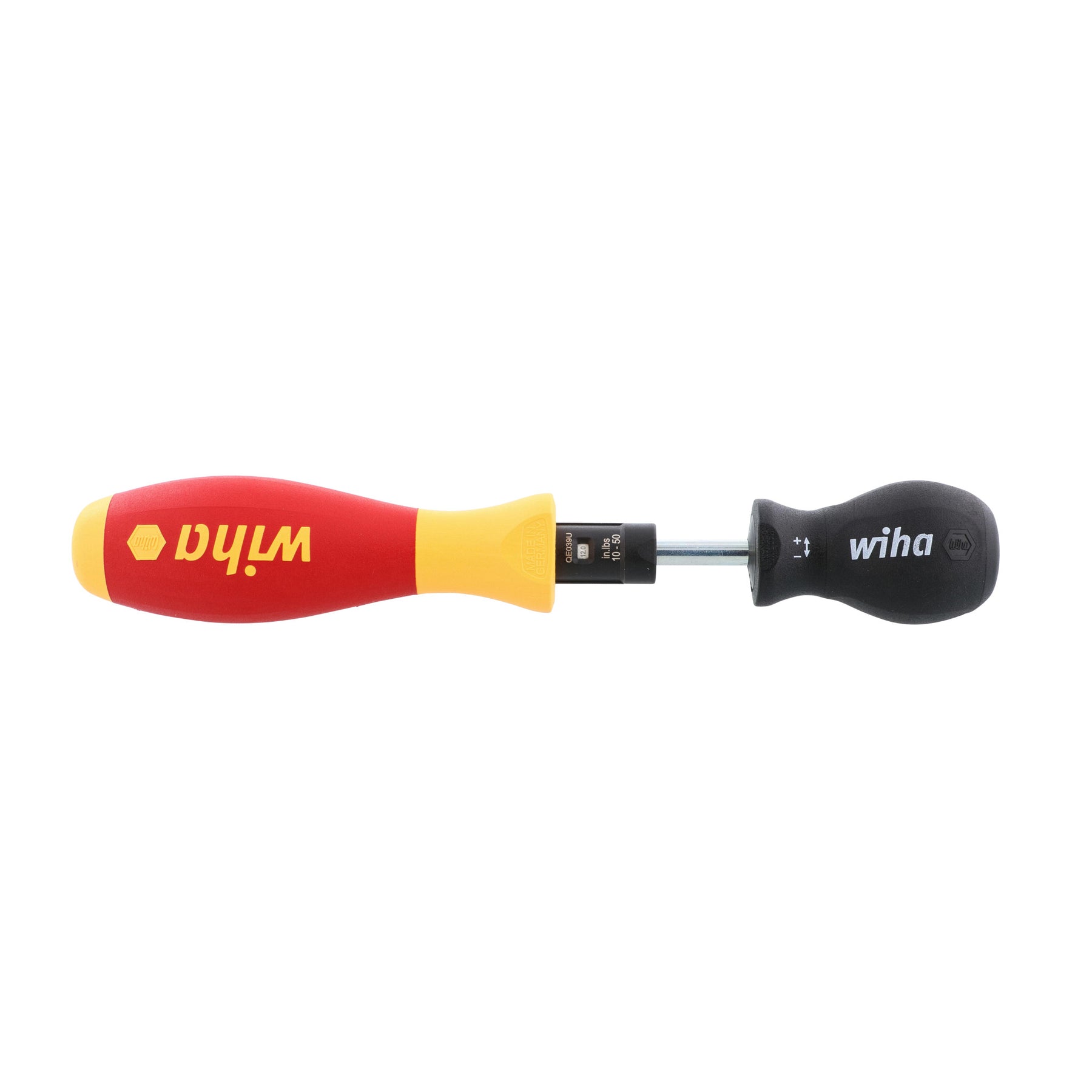

±6%. Accuracy quality and accuracy guaranteed to 5000 Cycles or 1-year. Secure torque setting, requires torque adjustment tool. Loosening torque approx. +30% greater than tightening torque automatically resets for next torque cycle. Requires SlimLine Blade holder #28350 for operation.
- SoftFinish cushion grip handle for comfort and control
- Dual durometer construction for long-lasting durability
- Torque setting view port for easily identifying adjustable torque settings
- Torque accuracy of +/- 6% for confidence in precise tolerances
- Audible and perceptible click for alerting users when the desired torque limit is attained
- Individual Serial Numbers and Certificate of Calibration Accuracy for warranty claim protection
- Automatically resets for the next torque setting application
- Maintains 50% greater unfastening torque for fastener removal
- Designed and engineered by Wiha Germany
- Designed for 5,000 cycles or 1 year—whichever comes first
- Individually tested to 10,000 volts AC and rated to 1,000 volts AC for safety and peace of mind
- Meet VDE testing standards for protection against arc flash explosion | Meet ASTM F1505 standard specifications for insulated and insulating hand tools | Meet EN/IEC 60900 testing standards for protection against arc flash explosion | Meet CSA testing benchmarks for safety and performance
- WIHA TORQUE TOOLS | Meet EN ISO 6789 for calibration and determination of measurement uncertainty | Meet BS EN 26789 for hand torque tools - requirements test methods | Meet ASME B107.14M for manually operated torque wrenches and screwdrivers
- Visit wihatools.com/torque-service-program for our Torque Control service program
- SKU: 28736
- UPC: 084705287362
- Weight lb: 0.45 lb
- Country of Origin: Germany
- Product Depth Inches: 2"
- Product Width Inches: 2"
- Product Height Inches: 8.5"
- Packaging: Plastic Tube
- Overall Length Inches: 5.4″
- Overall Length Millimeters: 138
- SKU: 28736
- Weight lb: 0.45 lb
- UPC: 084705287362
