Find the Correct Size
Torx Plus Screw Size Chart
| Drive Size | Pan Head | Flat Head | Socket Head | Socket Button | ||||
| Inch | Metric | Inch | Metric | Inch | Metric | Inch | Metric | |
| 1IP | --- | M0.9 | --- | M0.9 & M1 | --- | M0.9 | --- | --- |
| 2IP | --- | M1 | --- | M1.2 | --- | M1 | --- | --- |
| 3IP | --- | M1.2 | --- | M1.4 | --- | M1.2 | --- | --- |
| 5IP | --- | M1.4 & M1.6 | --- | M1.6 & M1.8 | --- | M1.4 & M1.6 | --- | --- |
| 6IP | #1 | M1.8 & M2 | #2 | M2 | #0 | M1.8 & M2 | #2 | --- |
| 7IP | #2 | --- | --- | --- | #1 | --- | #3 | --- |
| 8IP | #3 | M2.5 | #3 & #4 | M2.5 | #2 & #3 | M2.5 | #4 | M3 |
| 10IP | #4 & #5 | M3 | #5 & #6 | M3 | #4 & #5 | M3 | #5 & #6 | M3.5 |
| 15IP | #6 | M3.5 | #8 | M3.5 | #6 | M3.5 | #8 | M4 |
| 20IP | #8 | M4 | #10 | M4 | --- | --- | --- | --- |
| 25IP | #10 | M5 | #12 | M5 | #8 | M4 | #10 | M5 |
| 27IP | #12 | --- | 1/4 | --- | #10 | M4.5 & M5 | 1/4 | M6 |
| 30IP | 1/4 | M6 | --- | M6 | 1/4 | M6 | --- | --- |
| 40IP | 5/16 | M8 | 5/16 | M8 | --- | M7 | 5/16 | M8 |
| 45IP | 3/8 | --- | 3/8 | --- | 5/16 | M8 | 3/8 | M10 |
| 50IP | 7/16 | M10 | 7/16 & 1/2 | M10 | 3/8 | M10 | --- | --- |
| 55IP | 1/2 | M12 | 9/16 | M12 | 7/16 | M12 | 1/2 | M12 |
| 55IP | --- | --- | 5/8 | --- | 1/2 | --- | --- | M14 |
| 60IP | --- | --- | 3/4 | --- | 9/16 | M14 | 5/8 | M16 |
| 70IP | --- | --- | --- | --- | 5/8 | M16 | --- | --- |
| 80IP | --- | --- | --- | --- | 3/4 | M18 | --- | --- |
| 90IP | --- | --- | --- | --- | --- | M20 | --- | --- |
| 100IP | --- | --- | --- | --- | 7/8 & 1 | M22 & M24 | --- | --- |
PRECISION MACHINED, EXACT FIT TIPS

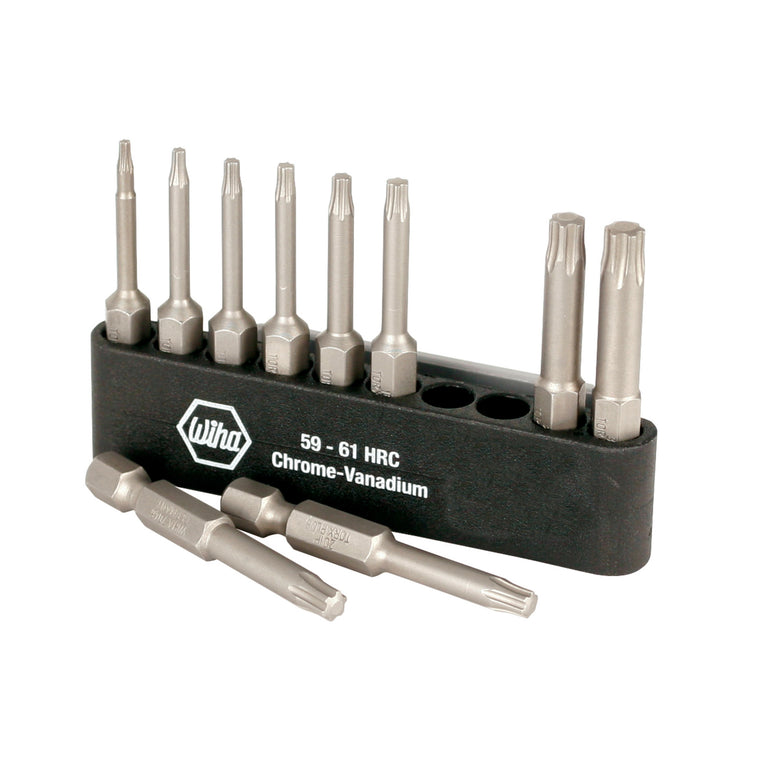

Torx Tools
